CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip

    Buy cheap CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip from wholesalers

    Buy cheap CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip from wholesalers
    • Buy cheap CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip from wholesalers
    • Buy cheap CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip from wholesalers
    • Buy cheap CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip from wholesalers
    • Buy cheap CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip from wholesalers
    • Buy cheap CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip from wholesalers

    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip

    Ask Lasest Price
    Brand Name : WISDOMSHOW
    Model Number : wds-520
    Price : $1,280.00/Sets
    • Product Details
    • Company Profile

    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip

    Manual Hot Air Ir bga desoldering station for iphone 5s motherboard WDS-520 smd repair tool
    Product Description
    Our BGA Rework Station/ BGA reballing station: to replace and repair the BGA chip in laptop, mobile phone.
    The main user : repairing shops and factory to provide the after-sales service and rework.
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip

    Manual BGA Rework Station

    Model:WDS-520
    Repair Success Rate:More Than 99%
    Using The Industrial Touch Screen
    Independent 3 Heating Zones, Hot Air Heating/ Infrared Preheat. (temperature accuracy ± 2℃)
    With CE Certification
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip

    Main Features
    Operation System
    Manual mode.
    ♦ Can solder, desolder, mount, pick and replace chip.
    ♦ User-friendly.
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip

    Strict Temperature Control System

    8 segments rising temperature/constant time / temperature rising slope, it can save hundreds of groups temperature curve.
    It adopts high accuracy K-type thermocouple close-loop control.
    The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip

    Safety System
    With CE certification.
    With automatic power-off protection device when abnormal accident happens and double over-temp protection function.

    How to separate BGA chip from motherboard?
    How to replace a new BGA chip?

    Repair steps:
    1) Separate the BGA chip from motherboard –we called desoldering
    2) Clean Pad
    3) Reballing or replace a new BGA chip directly
    4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
    5) replace a new BGA chip - we called Soldering
    Product Paramenters
    Power supply
    AC 220V±10% 50Hz
    Total power
    3800W
    Heater power
    Upper temp.zone 800W,second temp.zone 1200W,IR temp.zone 1800W(1200W controlled)
    Electrical material

    Touch screen+Temperature control module+microcontrollers

    Locating way
    V-shape card slot+Universal jigs
    PCB size
    Max 300mm*280mm Min 10mm*10mm
    Applicable chips
    Max 60mm*60mm Min 1mm*1mm
    PCB thickness
    0.3-5mm
    Overall dimension
    L460mm*W480mm*H500mm
    Weight of machine
    20KG
    Usage
    Repair chips / phone motherboard etc.

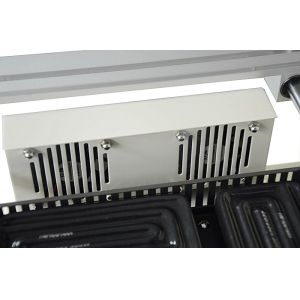

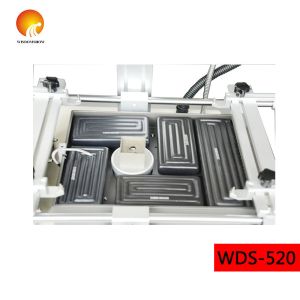

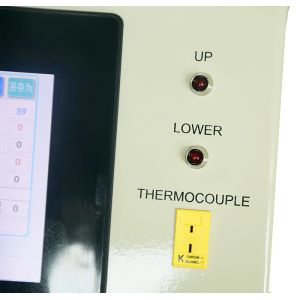

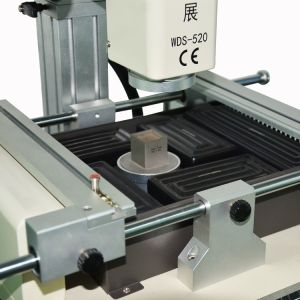

    Detailed Images
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip
    Packing&Shipping
    1, Standard Export Wooden cases
    2, Delivery in 5 workdays after payment confirm;
    3, Shipping by TNT,DHL,FEDEX , or by air or by sea
    4, Loading port: Shenzhen or Hongkong.
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip
    Company Introduction
    Shenzhen Wisdomshow Technology Co., LTD.
    Professional BGA Rework Station Manufacturer
    1. Following the business philosophy of "professional, integrity, excellence, customer first";
    2. One of the leading manufacturers of BGA rework stations;
    3. Over 10 years' experience in the BGA rework industry;
    4. All models have passed the CE Certificate and ISO;
    5. 100% QC inspection before shipment;
    6. Customized brand logo is acceptable;
    7. Owning a large market share in the world;
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip
    CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip

    Our Services & Advantages

    Contact:24 hours technical support by email or calling;
    Warranty:one year free,but all the other relative cost should be on the buyer's account;
    Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation;
    Service:Friendly English User manual provided; Good and professional after-sales service;
    Price:Give great discount to AGENCY to ensure agents profit.
